APRIS (Acoustic Pulse Reflectometry Inspection System)

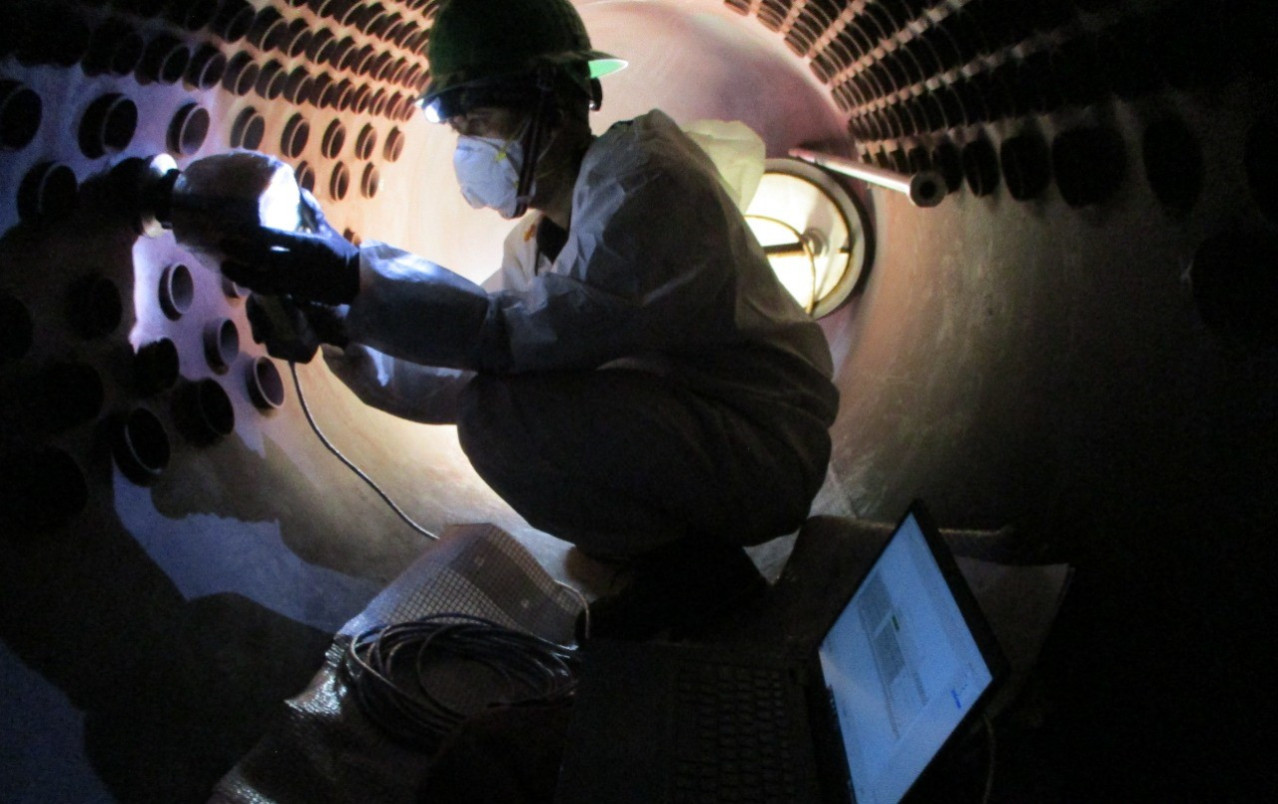

Acoustic Pulse Reflectometry Technology APR is an advanced NDT for tube inspection. We are the solutions provider to various industries requiring tube inspection found in Boilers, Fin Fans, Condenser, Heaters, Economizers, Super Heaters and other heat exchangers. Our methods are the ideal solution for multiple bend tube inspection, emergency shutdown tube leak detection, quick scan of tube bundles, and tube cleaning verification.
“FAST, RELIABLE, INTUITIVE”
Providing reliable advanced NDT solution for tube inspection, including the most challenging tube sizes & configurations. APRIS increases inspection cycle efficiency and operational cost savings.
APRIS DATA SHEET
INSPECTION RANGE
TUBE SIZE 7mm - 100mm (0.27" - 5.9") diameter
LENGTH Up to 25m (82'), if inspected from one end
Up to 50m (164'), if inspected from both ends
DETECTABLE DEFECTS
For 8mm - 63.5mm (5 /16" - 2 ½") tubes
HOLES Minimum diameter 1mm (0.039")
BLOKAGES Minimum of 5% of cross section
WALLLOSS Minimum of 10% of wall thickness
For 63.5mm -100mm (2 ½" - 4") tubes
HOLES Minimum diameter 3mm (0.118")
BLOCKAGES Minimum of 10% of cross section
WALLLOSS Minimum 20% of wall thickness
TUBE CONFIGURATION
Any configuration including:
U-bends, finned tubes, twisted tubes, multiple bends and spiral wound tubes.
TUBE MATERIAL
Any material including:
Metals (ferrous and non-ferrous) & non-metals (graphite, composites)
INSPECTION SPEED
10 seconds per tube
(depending on tube size, length and configuration)
ALGO RITHM
Patented Acoustic Pulse Reflectometry (APR) technology featuring specialized, proprietary
aIgorithms for NDT inspection.
HARDWARE
Compact handheld device
Non-invasive probe assembly including a transducer, microphone, controls, LCD screen and adaptors to fit tubes of any internal diameter up to 150mm (5.9”). Customized extensions (optional) for easy access to tube openings in challenging situations such as air cooler headers, hand holes for super heaters, economizers.
SOFTWARE
Data Acquisition Software
External notebook/laptop computer connected to handheld device. Sophisticated APRIS software installed in computer shall be utilized for inspection setup, probe status monitoring, test data recording.
PORTAL
Exclusive for interactive analysis using sophisticated algorithms based on artificial intelligence & deep learning which assist to generate quality and intuitive report based on user needs.
Seamless interaction among service providers, asset owners and manufacturers to enhances the user experience to track the inspection activities, reports and other support pertaining to inspection.
REPORTING
Customizable, graphical online reports. (Output: PDF or HTML)
PHYSICAL CHARACTERISTICS
Compact, rugged and lightweight design.
TOTAL BOX WEIGHT 14.88 lbs (6.75Kg)
BOX DIMENSIONS 450 L x 320 W x 200 H (mm) (17.7” x 12.6” x 7.8”)
POWER INPUT
Dual voltage system (110V/220V)
TEMPERATURE RANGE
-10°C to +50°C (14°F to 122°F)
CERTIFICATIONS
CE Declaration of Conformity; Safety Certificate IEC 61010; EMC Test Certificate; Company Quality System certified to ISO 9001:2008
STANDARDS
ASTM E2906/E2906M-18 ASME BPVC.V-2019-Article 18
